Vehicle Accessories Prediction

This solution automatically detects and identifies multiple specific accessories from vehicle images, enabling detailed vehicle characterization. It recognizes features such as bike racks, convertible or soft tops, grills or cattle guards, emergency light bars, low-profile wheels, open truck beds, roof boxes, and tire racks. Designed to integrate seamlessly with Snapshot, this solution enhances vehicle analysis with precise attribute detection. The typical usage is as follows

• Do a lookup on a full image using Snapshot.
• Use the result to crop the vehicle and save that image.
• Send the cropped image to vehicle-accessories (see below).

Running the Docker Image

• Ask us for the ENCRYPTION_KEY. Contact us.
• Install Docker if you do not have it.
• Then run the following Docker command to start server.
  • Note: pass --gpus all to assign all gpus to the Docker container. (Using --gpus all lets the Docker container access all GPUs, speeding up tasks like data processing by leveraging GPU power.)
  • In this example the server port is set to 8501.

docker run -e KEY=ENCRYPTION_KEY -p 8501:8501 platerecognizer/vehicle-accessories:latest

Vehicle Accessories Lookup

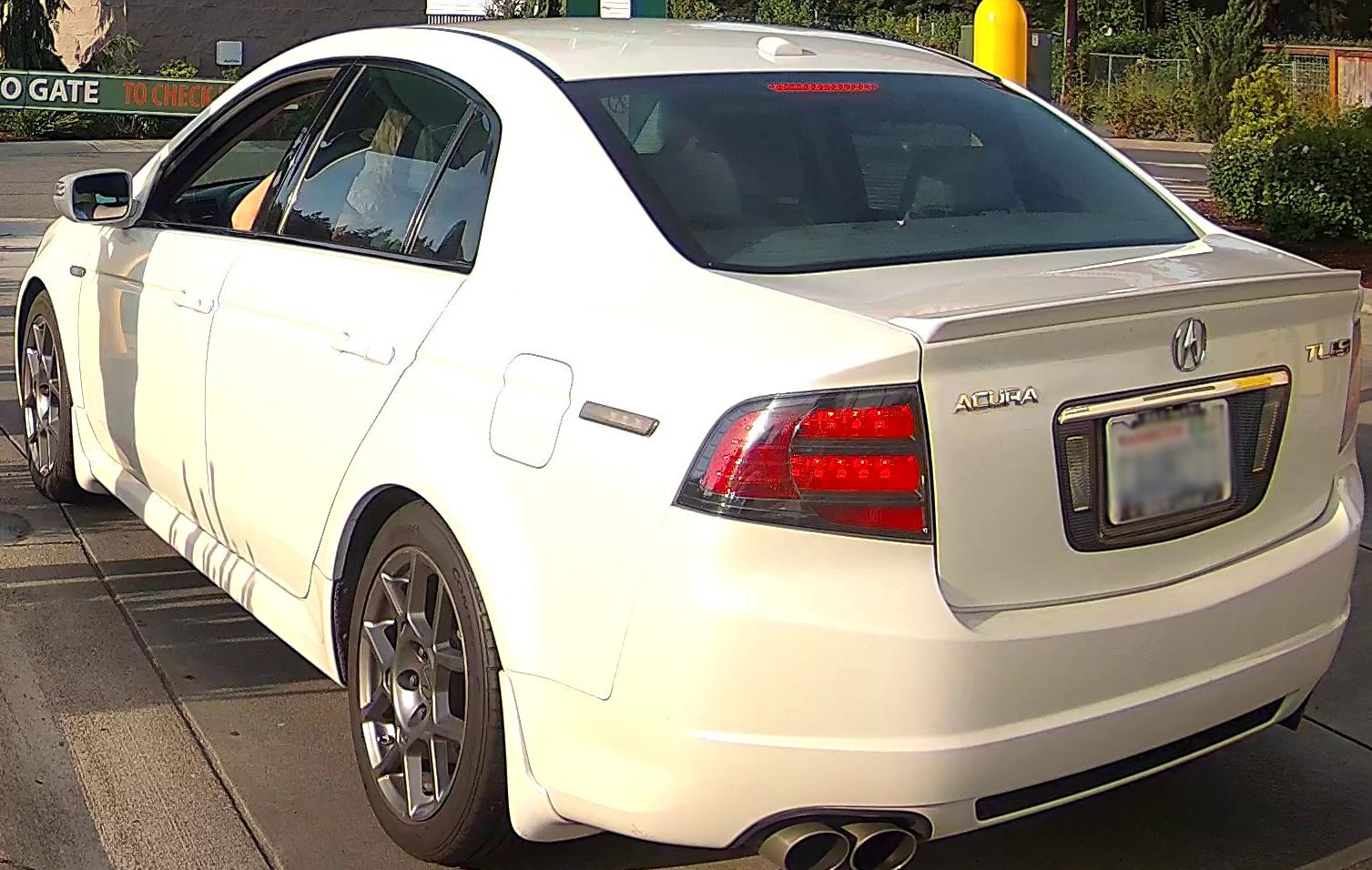

The server expects a base64 encoded image of the vehicle only. In the examples below, we use /path/to/vehicle.png.

warning

If you aren't using Snapshot to extract the vehicle, ensure /path/to/vehicle.png contains only one vehicle and is closely cropped. Passing an image with multiple vehicles will return only a single prediction (not one per vehicle) and can therefore produce misleading or incomplete accessory results.

If your image contains multiple vehicles, don't pass the full image directly to the model. Instead, run a vehicle detection step (for example using Snapshot) to get each vehicle's bounding box, crop each vehicle, and then send each cropped vehicle image individually to the model. See the "End-to-end Example" below for a complete sample that uses Snapshot to detect vehicles, crops them, and sends each crop to the vehicle-accessories prediction.

With cURL

curl -d "{\"instances\": [{ \"b64\":\"$(base64 -w0 /path/to/vehicle.png)\"}]}" \
    http://localhost:8501/v1/models/tfserve_model:predict

With Python

import requests
import base64
with open(r'/path/to/vehicle.png', 'rb') as fp:
    jpeg_bytes = base64.b64encode(fp.read()).decode('utf-8')
    predict_request = '{"instances" : [{"b64": "%s"}]}' % jpeg_bytes

    response = requests.post(
        'http://localhost:8501/v1/models/tfserve_model:predict',
        data=predict_request)
    response.raise_for_status()
print(response.json())

Result

The output shows the confidence scores for various vehicle-accessories. Each score represents the model's confidence that a specific accessory is present on the vehicle. In this example, both "Bike Rack" and "Antenna" have high confidence scores of 0.94895 and 0.95575, respectively, indicating the model is very certain these accessories are present. All other accessories have scores below 0.5, suggesting low confidence in their presence.

{
    "predictions": [
        {
            "labels": [
                "Bike Rack",
                "Soft Top",
                "Grill Guard",
                "Light Bar",
                "Open Truck Bed",
                "Roof Box",
                "Tire Rack",
                "Roof Rack",
                "Trailer Hitch",
                "Antenna"
            ],
            "score": [
                0.94895,
                0.05484,
                0.0530699976,
                0.0534,
                0.05326,
                0.05433,
                0.0573899969,
                0.05288,
                0.05328,
                0.95575
            ]
        }
    ]
}

End-to-end Example

snapshot_vehicle_accessories.py

import base64
import io

import requests
from PIL import Image

image_path = "car.jpg"
token = 'YOUR_API_TOKEN'  # Replace YOUR_API_TOKEN with your API TOKEN from https://app.platerecognizer.com/service/snapshot-cloud/
with open(image_path, 'rb') as fp:
    response = requests.post(
        'https://api.platerecognizer.com/v1/plate-reader/',
        files=dict(upload=fp),
        headers={'Authorization': f'Token {token}'},
    )
image = Image.open(image_path)
for result in response.json()['results']:
    xmin = result['vehicle']['box']['xmin']
    ymin = result['vehicle']['box']['ymin']
    xmax = result['vehicle']['box']['xmax']
    ymax = result['vehicle']['box']['ymax']
    im_bytes = io.BytesIO()
    image.crop((xmin, ymin, xmax, ymax)).save(im_bytes, 'JPEG', quality=95)
    im_bytes.seek(0)
    b64_data = base64.b64encode(im_bytes.read()).decode('utf-8')
    predict_request = '{"instances" : [{"b64": "%s"}]}' % b64_data
    response = requests.post(
        'http://localhost:8501/v1/models/tfserve_model:predict', data=predict_request
    )
    print(response.json())
